Home Production lines 300 m³/day CLC Block Production Line CAPACITY QUICK INFORMATION
Production-line configuration at a glance 300 m³/day Planned output
24 Equipment items
Approx. 166 kW Installed power
Physical-foaming CLC Process route
Compare capacity: 30 m³/day 50 m³/day 100 m³ 200 m³/day 300 m³/day SIX-STEP PROCESS
One connected production rhythm 01 Prepare & meter Feed and weigh the confirmed powder, aggregate and water inputs.
02 Physical foaming & mixing Prepare the physical foam and add it through the approved batch sequence.

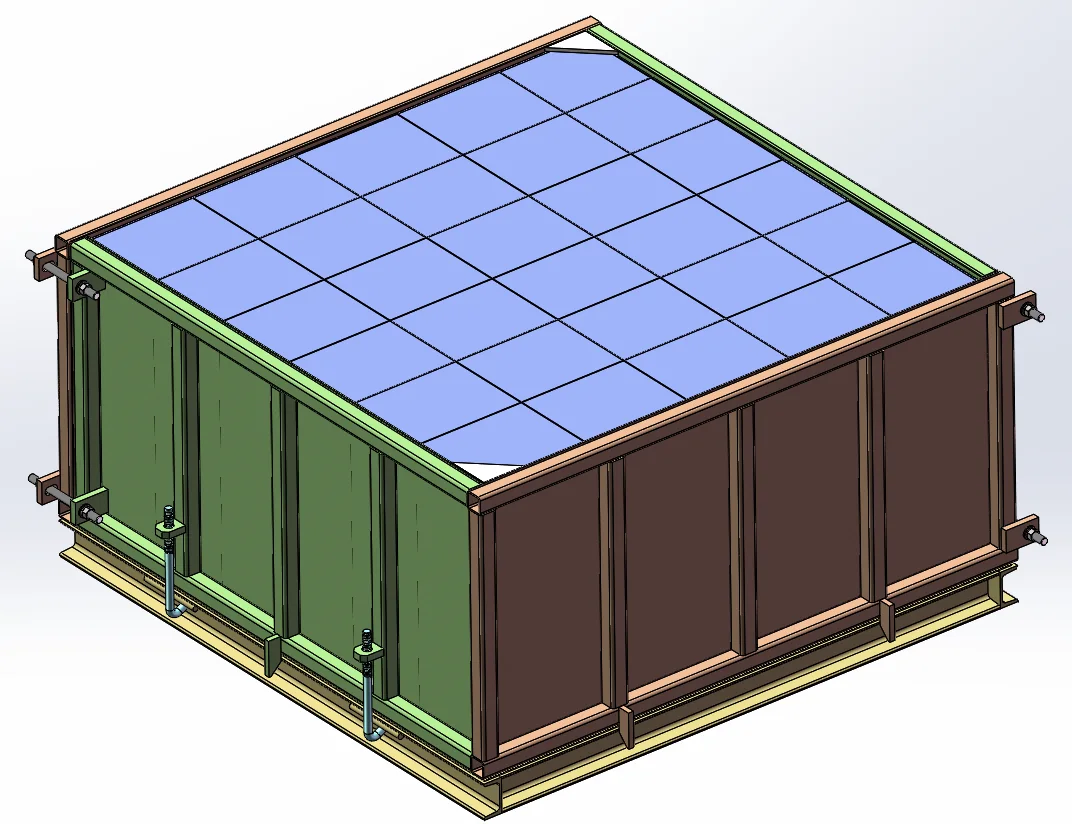

03 Pour & mould Fill the confirmed mould variant without borrowing another capacity’s tooling.
04 Cure & demould Match curing time, mould count and demoulding condition to the product.
05 Cut & finish Use the listed cutting architecture for this capacity only.
06 Transfer & stack Move finished blocks through the confirmed handling and stacking scope.
COMPLETE EQUIPMENT CONFIGURATION
24/24 equipment items with detailed specifications Select an equipment name for its detail page, or select an available thumbnail to open the equipment image at full size.

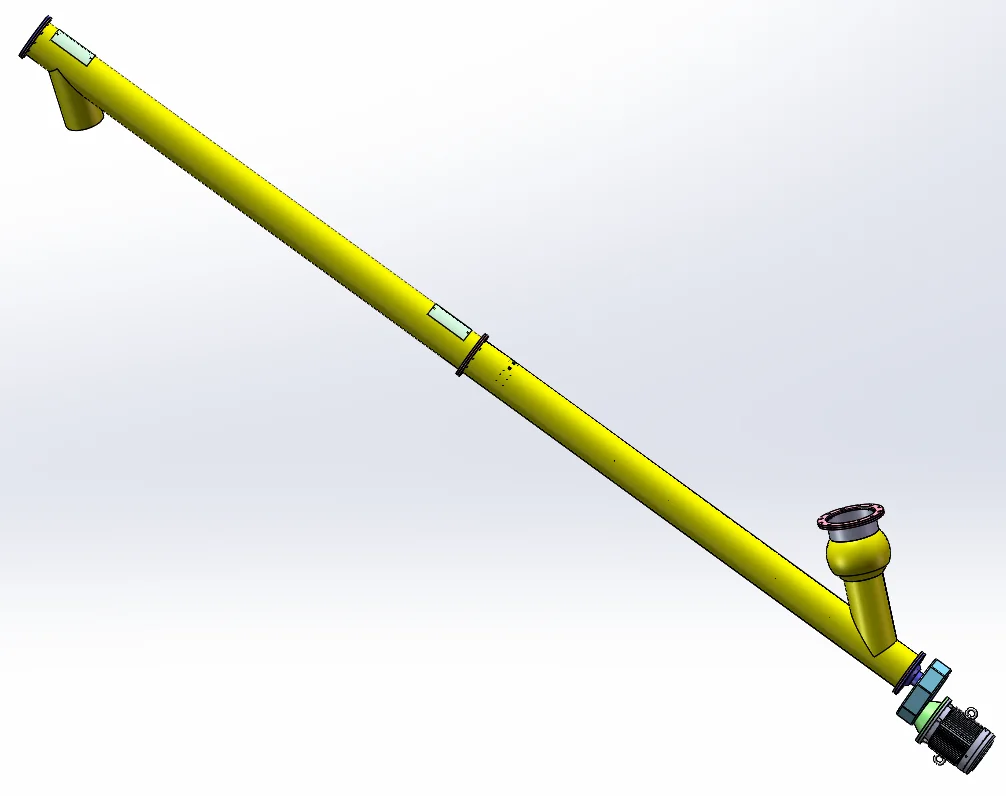

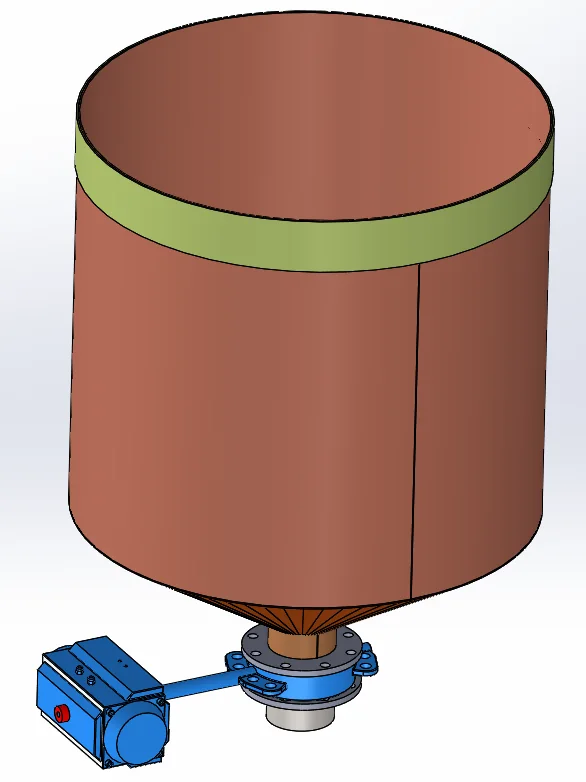

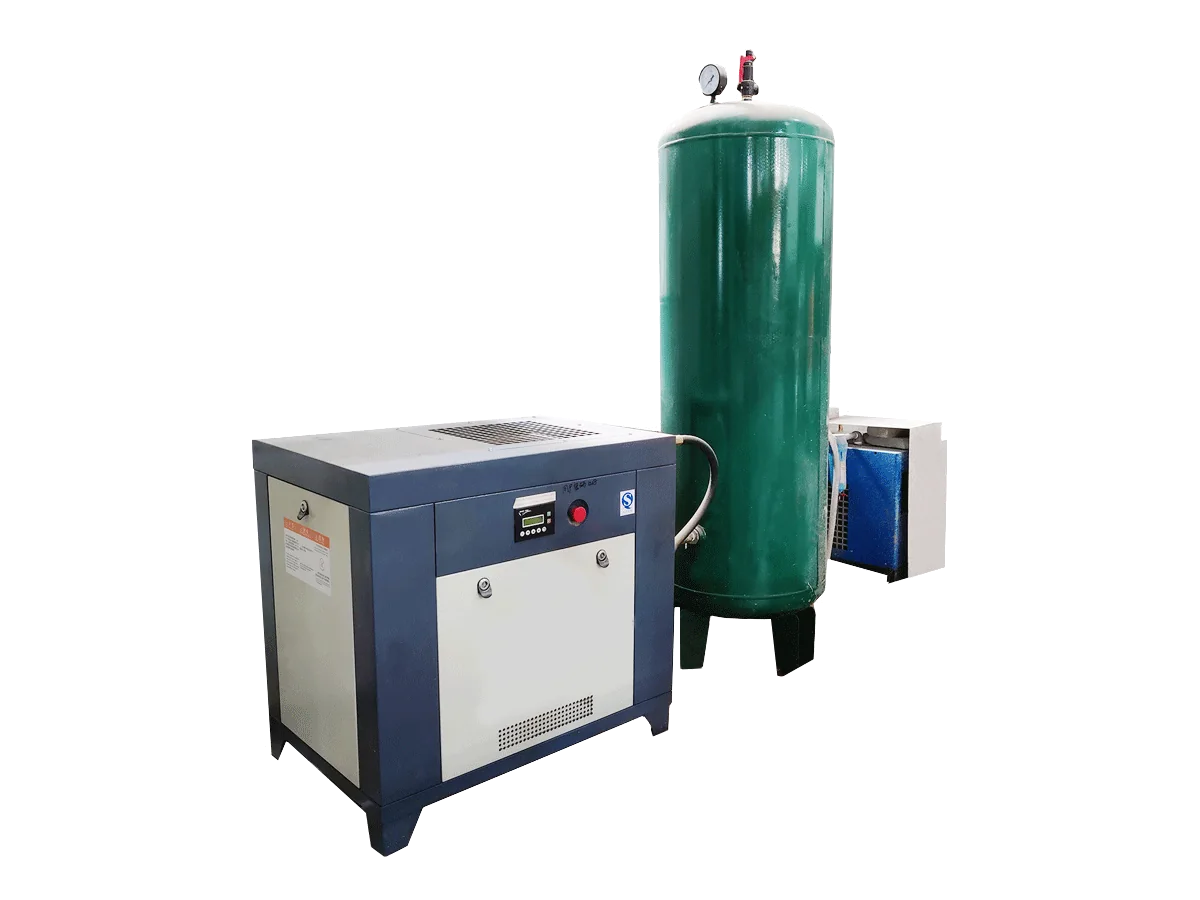

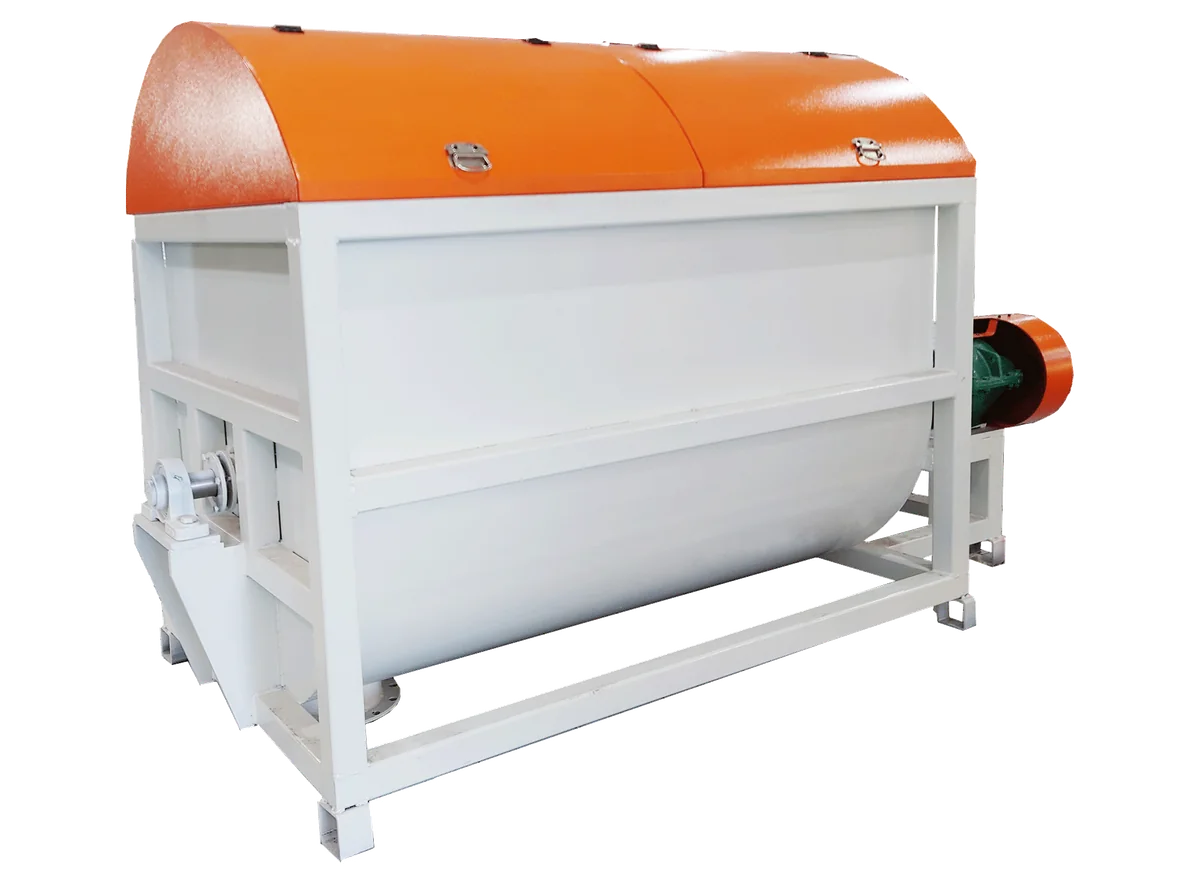

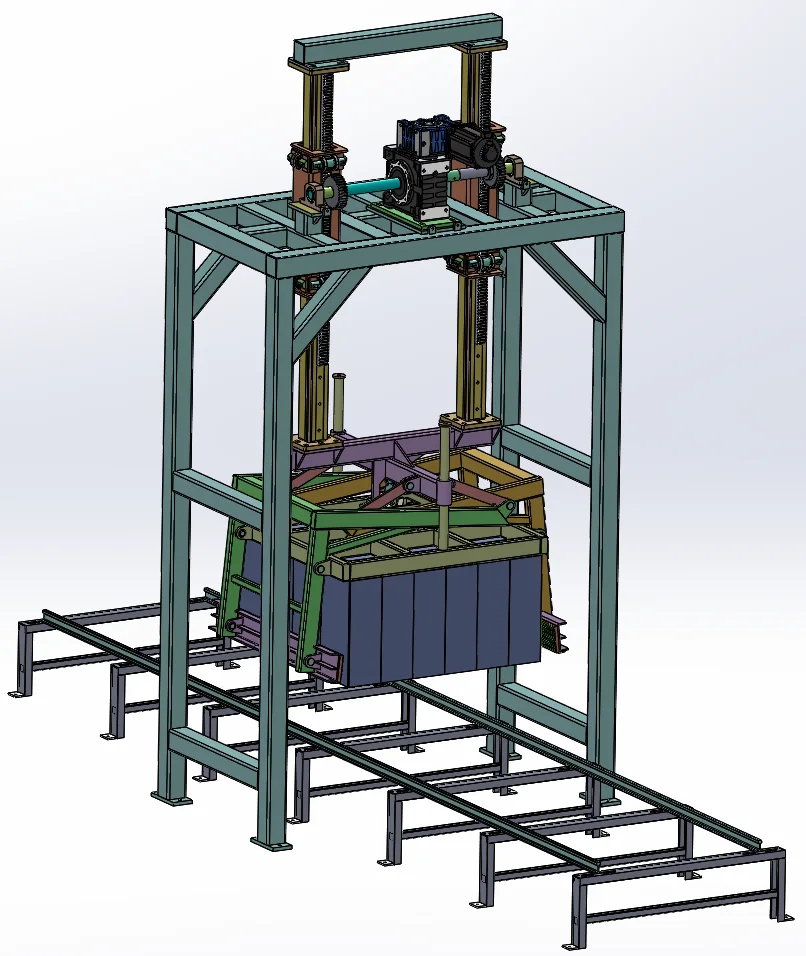

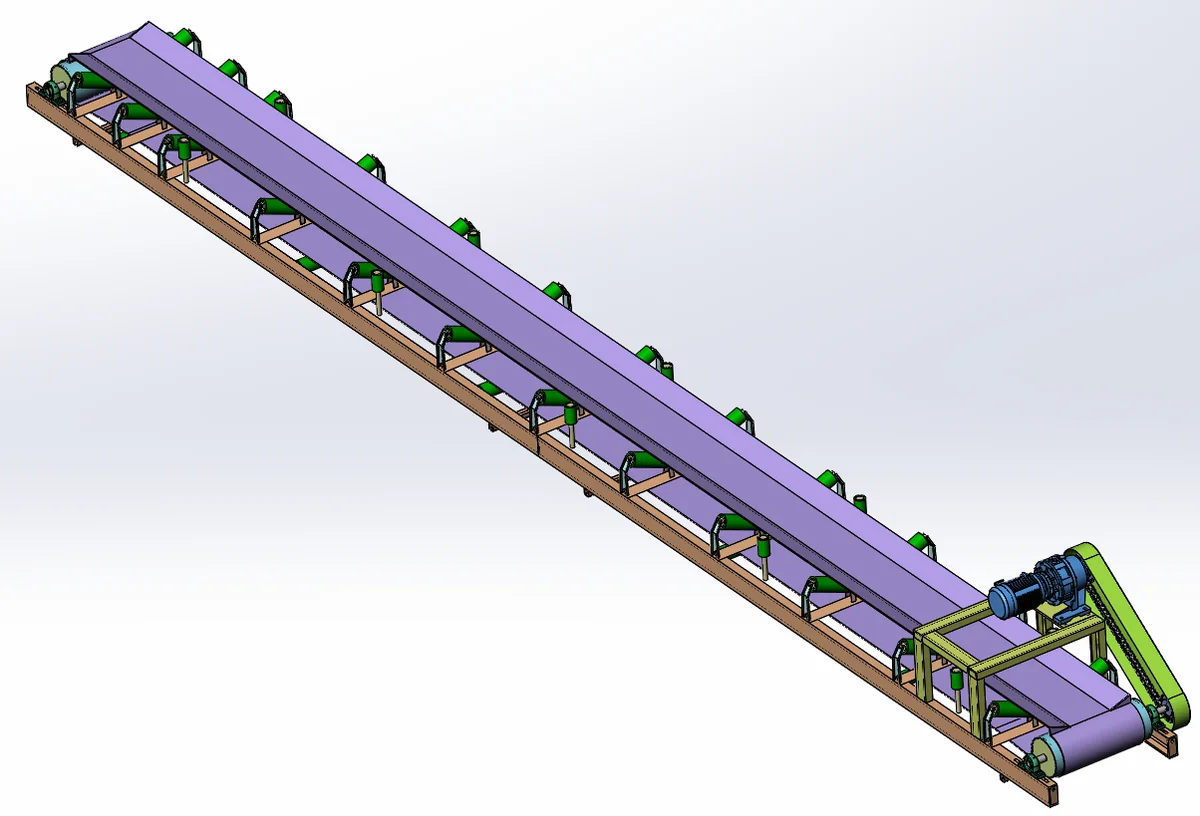

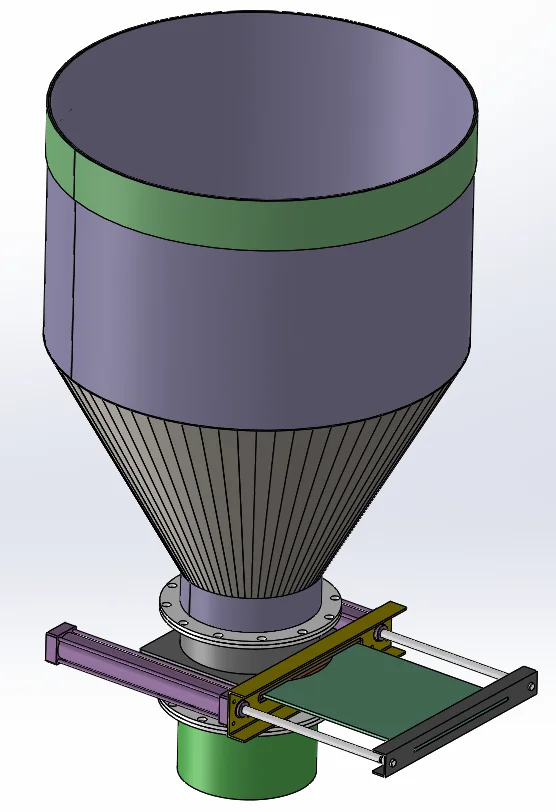

300 m³/day CLC Block Production Line — equipment configuration No. Equipment Stage Model Dimensions Qty. Unit power Total Preparation & metering 1 Preparation & metering HDSL-001 6640 × 350 × 1100 mm 2 11 kW 22 kW 2 Preparation & metering HDPDA-001 9000 × 800 × 800 mm 1 2.2 kW 2.2 kW 3 Preparation & metering HDFL-001 1200 × 1500 × 1400 mm 1 0.55 kW 0.55 kW 4 Preparation & metering HDFL-001 Ø1310 × H1950 mm 1 0.55 kW 0.55 kW 5 Preparation & metering HDSL-001 Ø1100 × H1140 mm 1 0.55 kW 0.55 kW Foaming / aeration & mixing 6 Foaming / aeration & mixing HDKWF1-001 1150 × 750 × 1140 mm 1 7.5 kW 7.5 kW 7 Foaming / aeration & mixing HDKY-001 1500 × 500 × 2000 mm; 0.8 m³ tank 1 15 kW 15 kW Preparation & metering 8 Preparation & metering Customer-supplied 5000 × 3500 × 1500 mm 1 Foaming / aeration & mixing 9 Foaming / aeration & mixing EPSJB-1 2000 × 1300 × 1400 mm 1 22 kW 22 kW Cutting & finishing 10 Cutting & finishing HDSQ1-003 9000 × 3300 × 3650 mm 1 30.8 kW 30.8 kW 11 Cutting & finishing HDOSD1-001 3000 × 1000 × 2100 mm 1 22 kW 22 kW Handling & stacking 12 Handling & stacking HDTH-005 5600 × 1530 × 3100 mm 1 3 kW 3 kW 13 Handling & stacking HDTH-006 4800 × 2600 × 3800 mm 1 6.2 kW 6.2 kW 14 Handling & stacking HDTH-005 2430 × 1330 × 3900 mm 1 7.5 kW 7.5 kW Moulding, curing & circulation 15 Moulding, curing & circulation HDBD2-001 1800 × 1080 × 400 mm 6 3 kW 18 kW 16 Moulding, curing & circulation TM-001 12,000 × 1100 mm 1 2.2 kW 2.2 kW 17 Moulding, curing & circulation HM-001 12,000 × 1100 mm 1 2.2 kW 2.2 kW 18 Moulding, curing & circulation JZ-001 12,000 × 1100 mm 1 2.2 kW 2.2 kW Preparation & metering 19 Preparation & metering HDZD-001 4000 × 1100 mm 3 0.3 kW 0.9 kW 20 Preparation & metering HDZD-002 4000 × 1100 mm 3 0.3 kW 0.9 kW PLC, electrical & tooling 21 PLC, electrical & tooling HDKZ1-001 1300 × 1100 × 400 mm 1 22 PLC, electrical & tooling HDCB-001 700 × 500 × 400 mm 1 23 PLC, electrical & tooling 1 24 PLC, electrical & tooling HDCM1-002 1220 × 1220 × 630 mm 174
