30 m³/day Compact Lightweight Block Production Line

CAPACITY QUICK INFORMATION

Production-line configuration at a glance

SIX-STEP PROCESS

One connected production rhythm

1. 01

   Feed & measure

   Feed and measure the prepared batch materials for the compact line.

2. 02

   Mix & pour

   Use the mobile mixer and pourer to prepare and fill the moulds.

3. 03

   Mould & cure

   Hold the moulded blocks until the product reaches the specified release condition.

4. 04

   Demould

   Use the cantilever lifting arrangement for the listed manual demoulding step.

5. 05

   Push cut

   Move the green product through the listed push-type vertical cutting step.

6. 06

   Manual palletizing

   Transfer and palletize finished blocks according to the compact layout.

COMPLETE EQUIPMENT CONFIGURATION

7/7 equipment items with detailed specifications

Select an equipment name for its detail page, or select an available thumbnail to open the equipment image at full size.

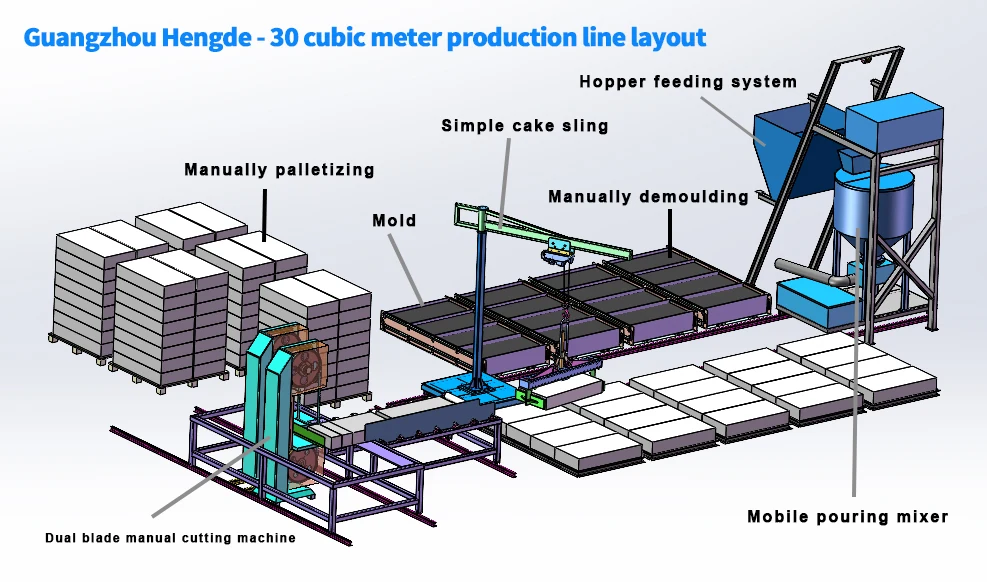

30 m³/day Compact Lightweight Block Production Line — equipment configuration

No.	Equipment	Stage	Model	Dimensions	Qty.	Unit power	Total
Feeding & measuring

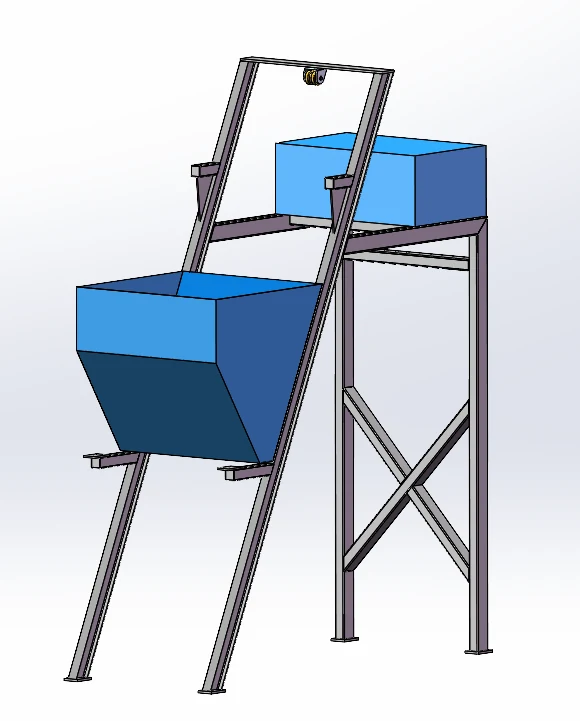

1	Measuring machineView equipment detail →	Feeding & measuring	HLY-04-00	3650 × 1350 × 4200 mm	1	0.55 kW	0.55 kW
Mobile mixing & pouring

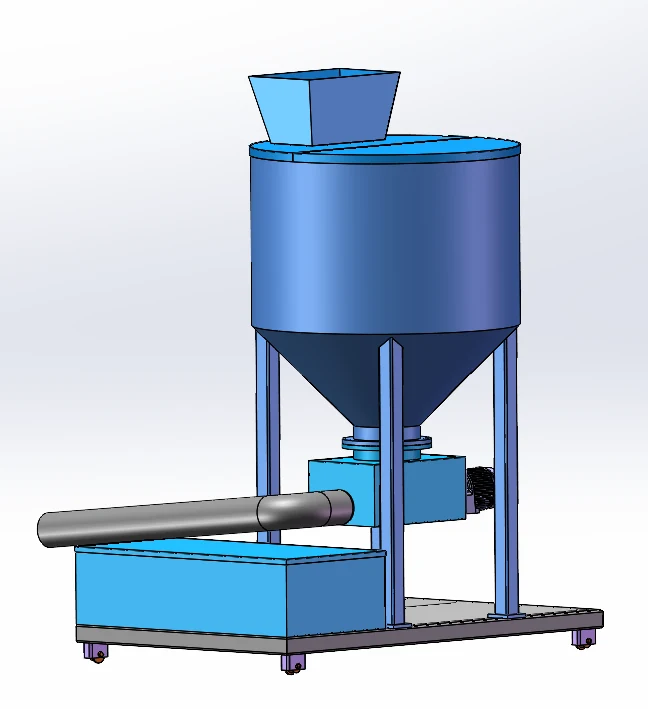

2	Mobile mixer and pourerView equipment detail →	Mobile mixing & pouring	HLY-06-00	2100 × 1300 × 2500 mm	1	5.5 kW	5.5 kW
Push cutting

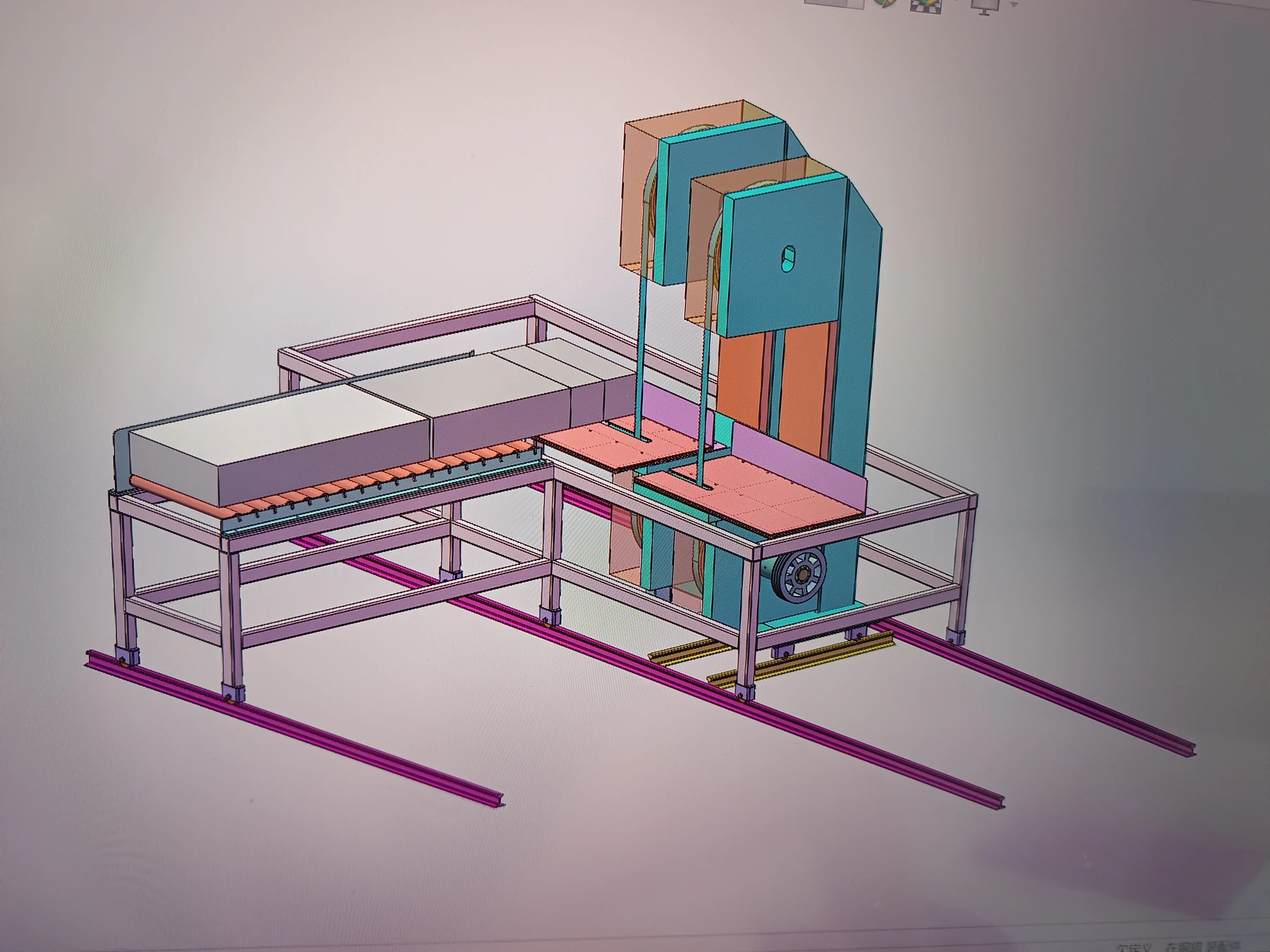

3	Vertical push cutterView equipment detail →	Push cutting	HLY-00	2000 × 1350 × 1850 mm	1	15 kW	15 kW
Demoulding & manual handling

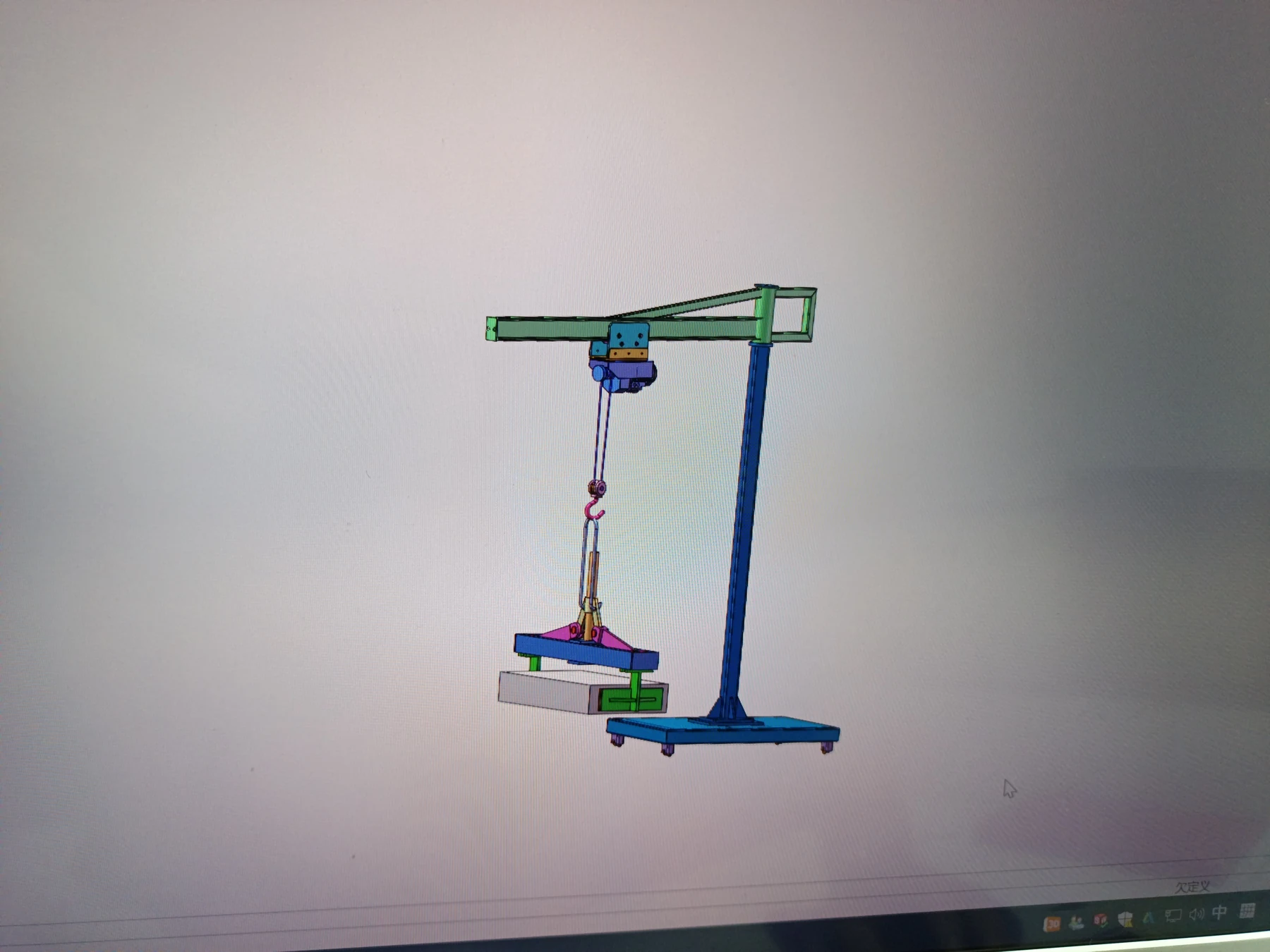

4	Manual cantilever billet lifterView equipment detail →	Demoulding & manual handling	HLY-03-00	3000 × 1300 × 3200 mm	1	1.6 kW	1.6 kW
Track movement

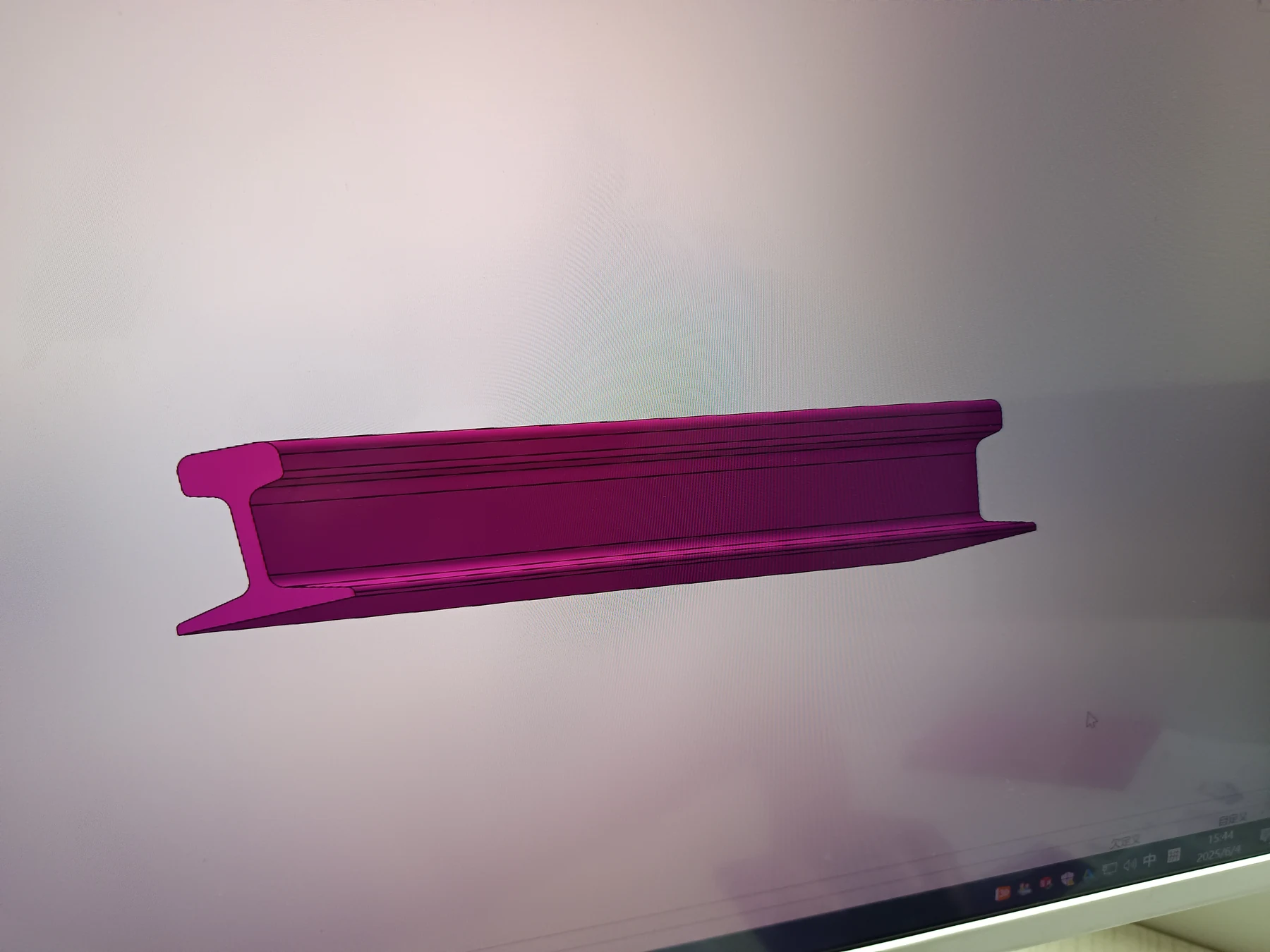

5	Pourer track lineView equipment detail →	Track movement	HLY-07	6000 mm per rail	2 rails
6	Cantilever lifter track lineView equipment detail →	Track movement	HLY-08	3500 mm per rail	2 rails
Moulds & tooling

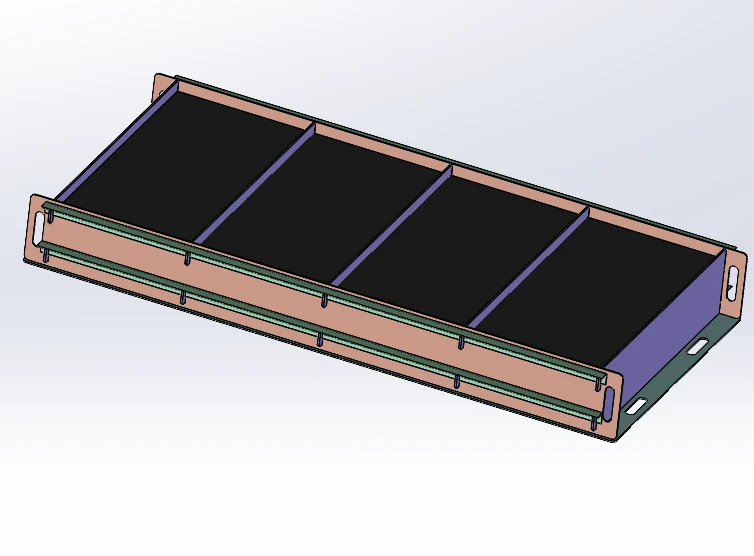

7	Spliced mouldView equipment detail →	Moulds & tooling	JMX-01-01ZT	2600 × 1300 × 300 mm	20
