CONNECTED LINE EQUIPMENT

Equipment for complete production lines

Hengde connects material preparation, metering, physical foaming, mixing, mould circulation, cutting, handling and centralized control around one production rhythm.

Plan your factory See project evidence

Independent engineeringEquipment manufacturingProject delivery

VERIFIED ENGINEERING DRAWINGMulti-station cutting connected to line transfer

Engineering drawing of Hengde multi-station horizontal cutting equipment

HENGDEENGINEERED AS ONE SYSTEM

8 stagesFrom feeding to handling

PLCCentralized line control

CAD + realVerified media types

PROCESS MAP

Select each machine as part of the line

ENGINEERING DRAWING

01 01

Preparation & metering

Storage, feeding, conveying, powder and water metering configured around real material properties.

Belt conveying

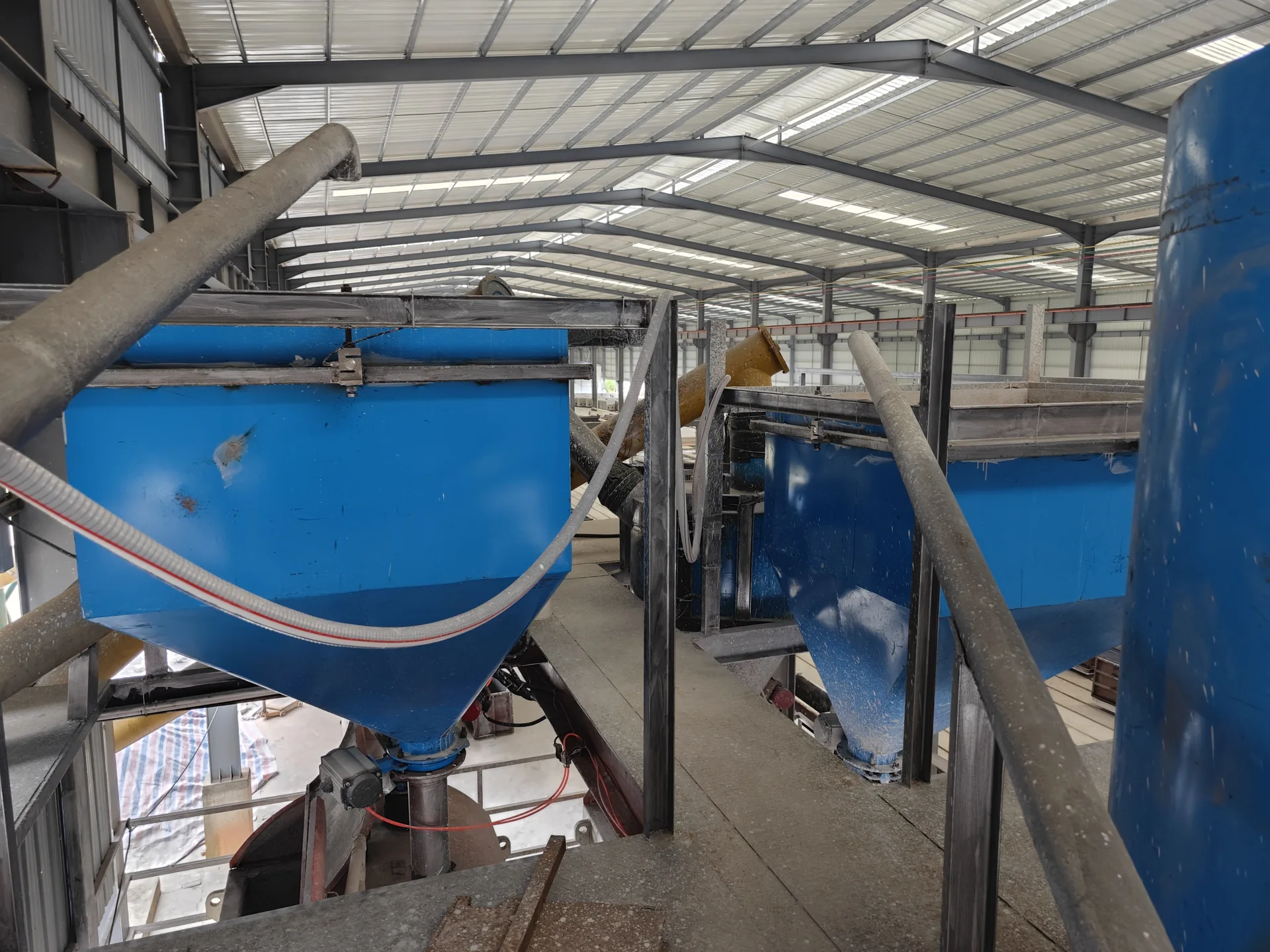

Powder dosing
Water metering

REAL EQUIPMENT PHOTO

02 02

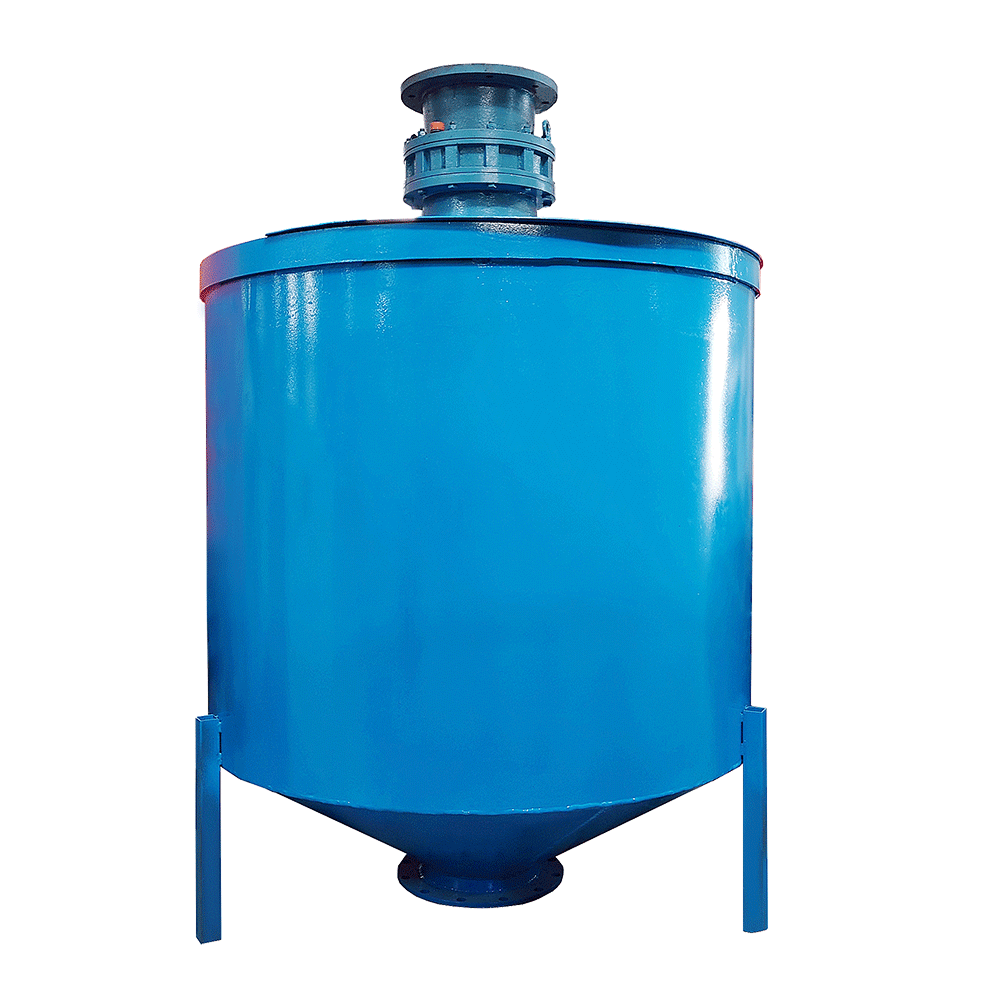

Foaming & mixing

Physical foam preparation and mixing selected by slurry behaviour, target density and batch rhythm.

Physical foam generator
Vertical or horizontal mixing
Controlled discharge

ENGINEERING DRAWING

03 03

Moulding & circulation

Pouring, curing positions, demoulding, return movement and powered transfer planned as one loop.

Square or long moulds
Mould return line
Demoulding tools

ENGINEERING DRAWING

04 04

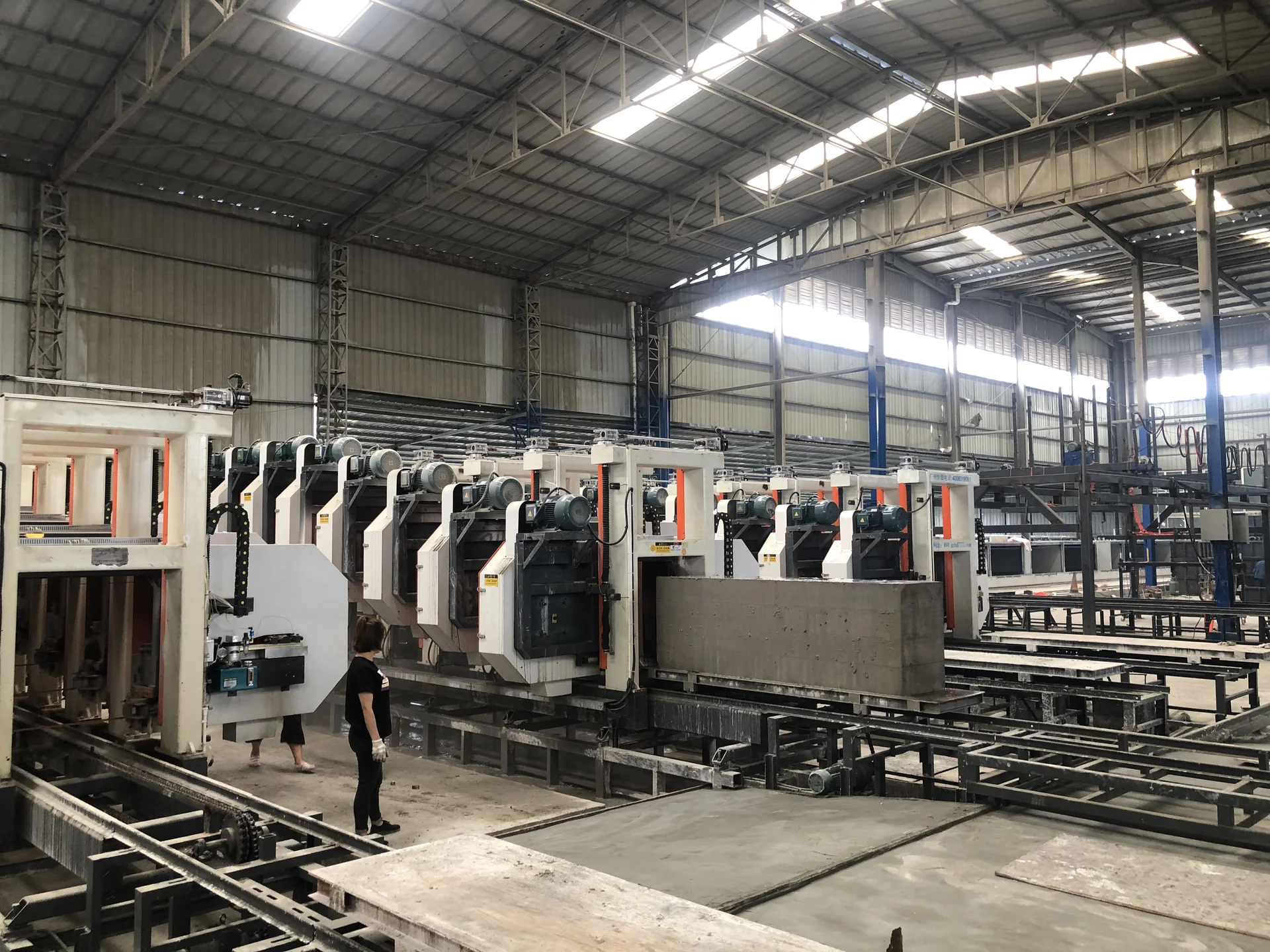

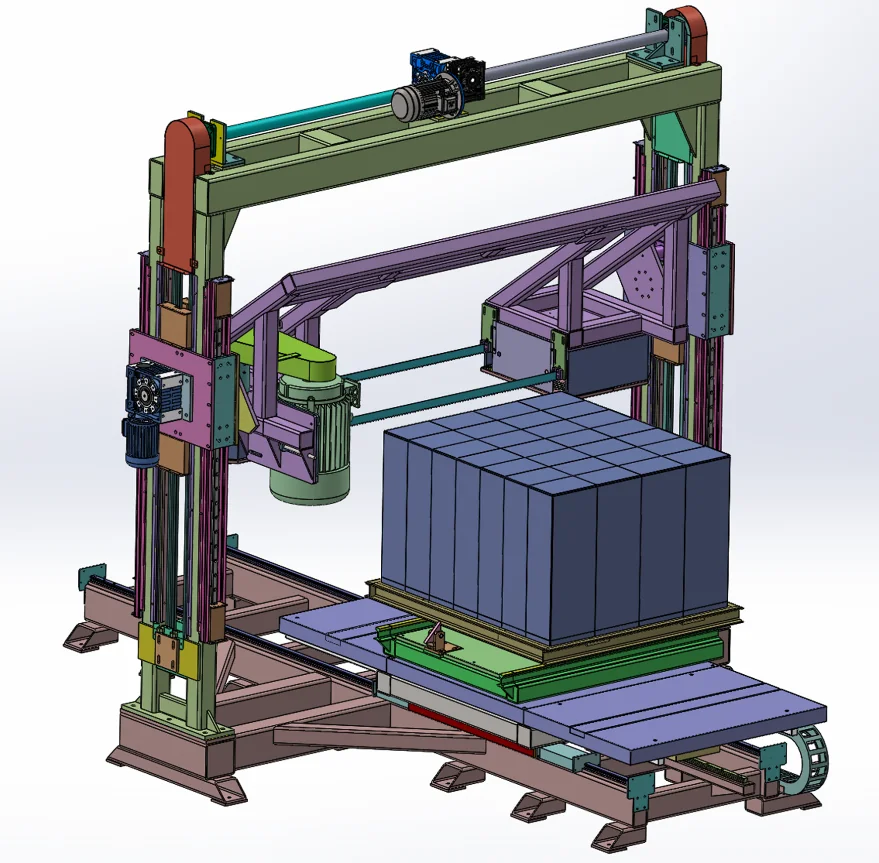

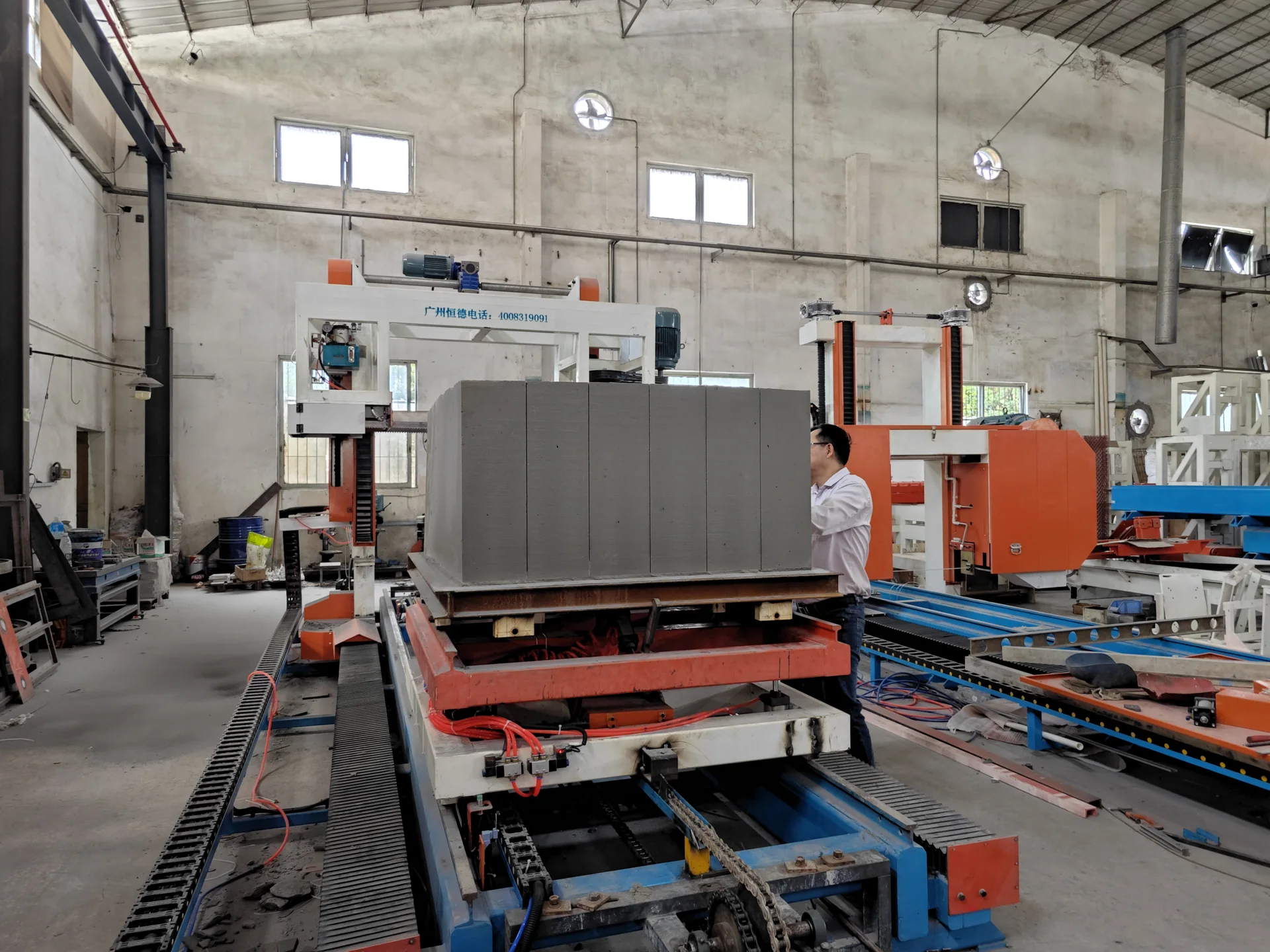

Cutting & handling

Horizontal and vertical systems matched to billet size, material condition and finished dimensions.

Cutting systems
Peeling and slotting
Clamps and stacking

VERIFIED EQUIPMENT MEDIA

Equipment buyers can inspect before they enquire

REAL EQUIPMENT PHOTO

Physical foaming machine

Physical foam preparation for configured CLC and NAAC lightweight wall-material lines.

REAL EQUIPMENT PHOTO

PLC main control cabinet

Centralized line control; remote and data functions depend on the delivered electrical scope.

ENGINEERING DRAWING

Mould return line

Rail-transfer engineering for mould circulation and line connection.

ENGINEERING DRAWING

Belt conveyor

Material conveying and metering connection for production-line feeding.

ENGINEERING DRAWING

Water metering system

Water storage and controlled discharge for batch preparation.

REAL FACTORY PHOTO

Automatic slotting machine

Finishing equipment configured around the product dimensions and required slot or groove profile.

REAL FACTORY PHOTO

Stacking clamp system

Finished-product clamping and stacking developed around product condition, grip and movement.

MOULD CIRCULATION

Return, pouring and transfer lines keep the factory moving

Mould return, casting, demoulding and transfer equipment must be planned around curing time, mould quantity, cutting rhythm and workshop layout.

Hengde mould return and transfer line engineering drawing — Engineering drawing for mould circulation and transfer.

SELECTION INPUTS

What engineering needs before selecting equipment

Send product dimensions, material reports, daily output and shifts, factory layout, voltage and frequency, automation expectations and — for upgrades — photos or video of the current bottleneck.
