PREPARATION & METERING
Dosing hopper
Buffers and meters confirmed batch material before mixing.
Compare line configurations

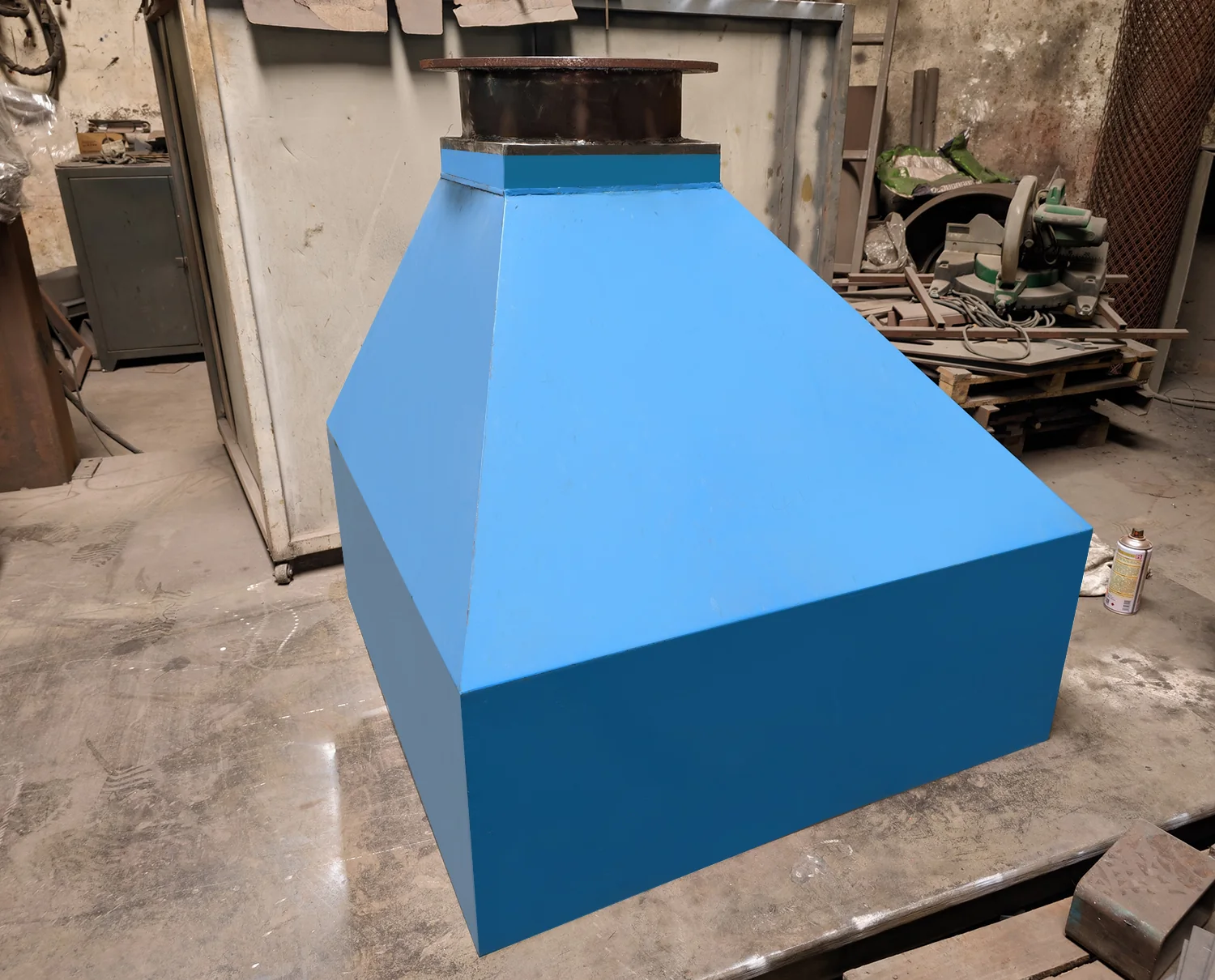

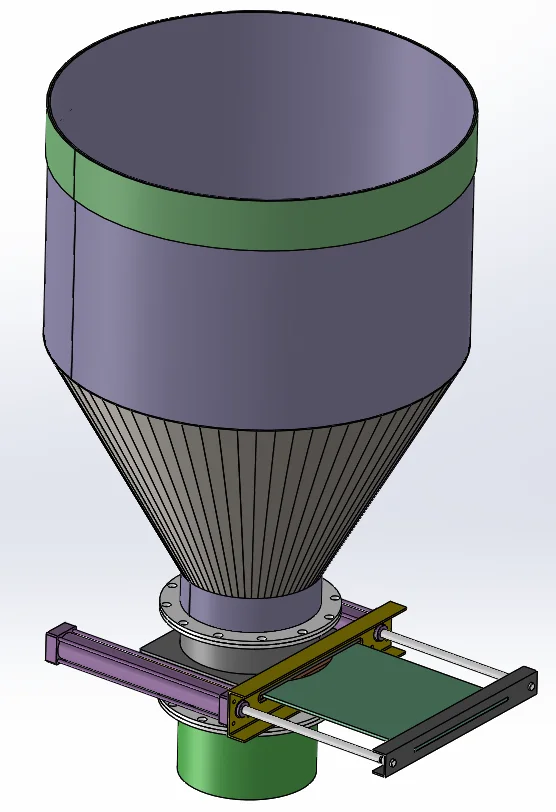

EQUIPMENT GALLERY
Real equipment photos and engineering views
Open any image to inspect the original full-size media.
STANDARD EQUIPMENT PARAMETERS
Model, dimensions, power, weight and function
Standard catalogue parameters. Capacity-specific quantity remains in the production-line configuration table below.
| Variant | Model | Dimensions | Rated power | Reference weight | Function |
|---|---|---|---|---|---|
| Conveyor-linked weighing hopper | HDSS-001 | Ø1000 × H1500 mm | 0.55 kW | 93 kg | Buffers and weighs material at the connected conveying stage. |
Reference parameters describe the listed equipment model. Final interfaces, voltage, quantity and delivered configuration are confirmed in the project quotation and engineering drawings.
PRODUCTION-LINE CONFIGURATIONS
Configuration options by production line
The highlighted row matches the production line you selected. Final model, dimensions, quantity and power are confirmed during project engineering.
| Production line | Model | Dimensions | Qty. | Unit power | Total |
|---|
