CUTTING & FINISHING
Three-station rotary gantry vertical saw
Completes the second cutting direction for the listed twin-mould route.
Compare line configurations
EQUIPMENT GALLERY

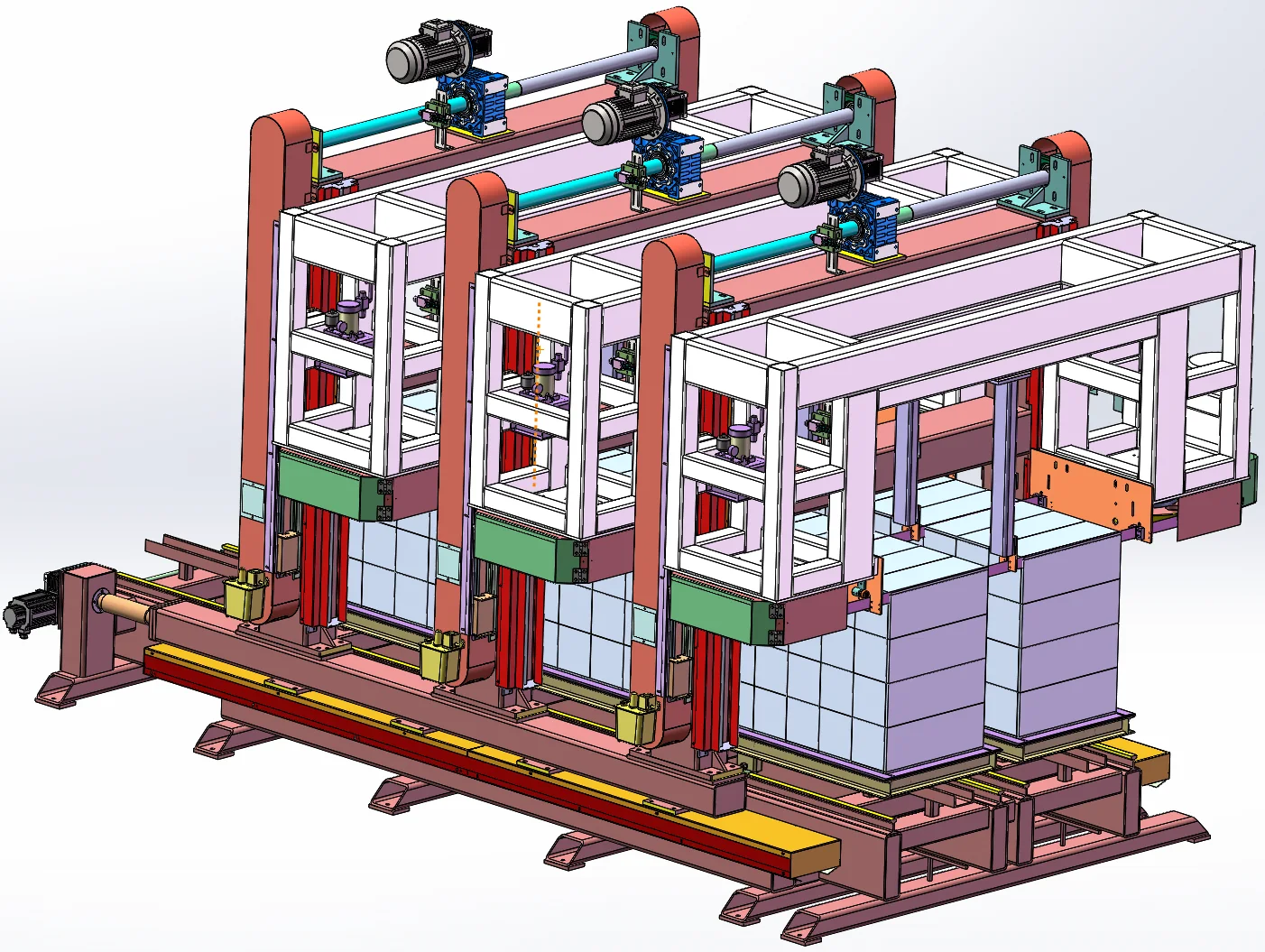

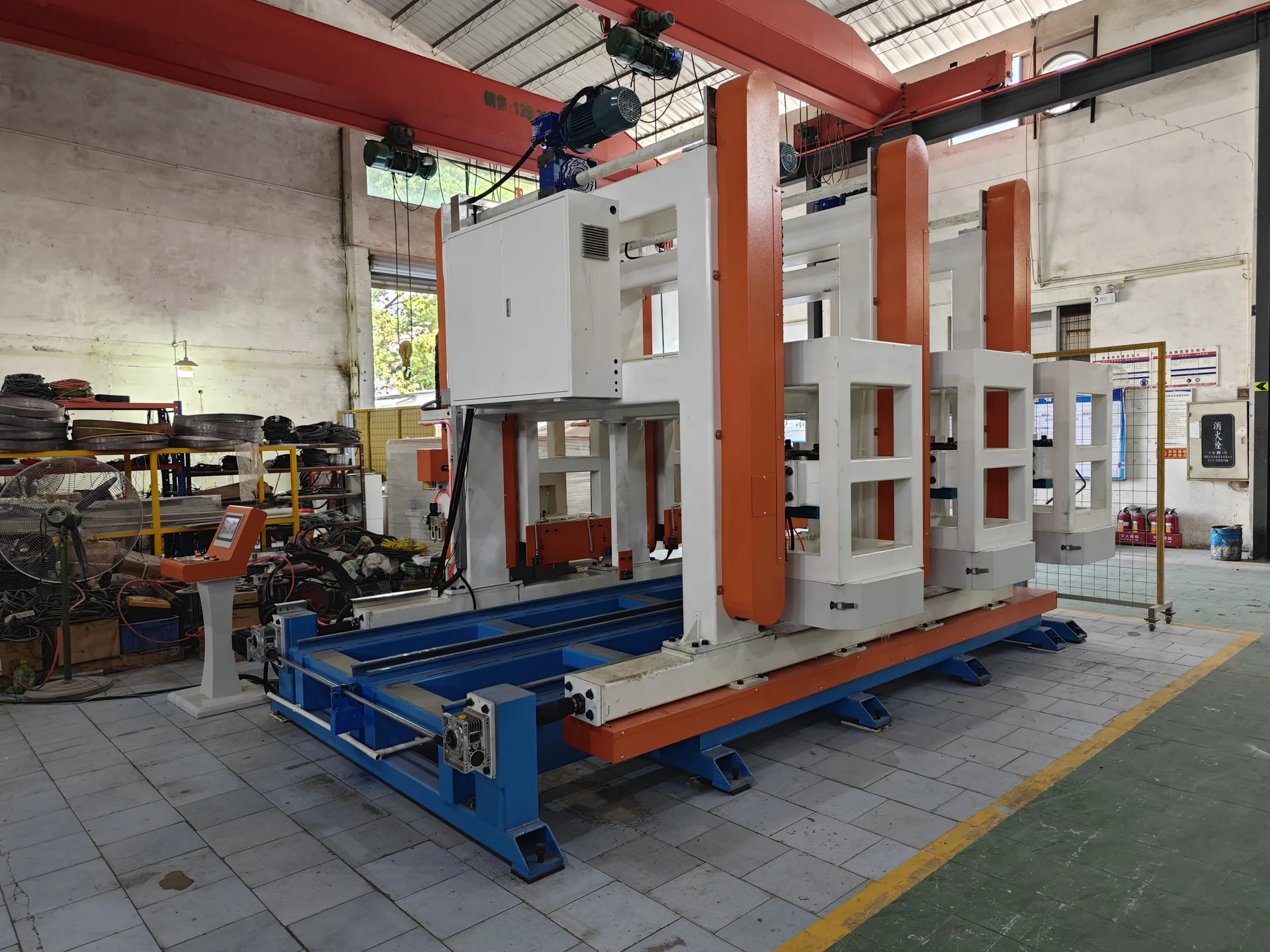

Real equipment photos and engineering views
Open any image to inspect the original full-size media.
STANDARD EQUIPMENT PARAMETERS
Model, dimensions, power, weight and function
Standard catalogue parameters. Capacity-specific quantity remains in the production-line configuration table below.
| Variant | Model | Dimensions | Rated power | Reference weight | Function |
|---|---|---|---|---|---|
| Twin-mould three-pass CNC gantry vertical saw | HDSQ-003 | 5000 × 3300 × 3200 mm | 44.6 kW | 8600 kg | Cuts two billets up to 3440 × 600 × 850 mm in the listed configuration. |
Reference parameters describe the listed equipment model. Final interfaces, voltage, quantity and delivered configuration are confirmed in the project quotation and engineering drawings.
PRODUCTION-LINE CONFIGURATIONS
Configuration options by production line
The highlighted row matches the production line you selected. Final model, dimensions, quantity and power are confirmed during project engineering.
| Production line | Model | Dimensions | Qty. | Unit power | Total |
|---|---|---|---|---|---|
| 300 m³/day → | HDSQ1-003 | 9000 × 3300 × 3650 (high-precision rotary configuration) | 1 | 53.2 kW | 53.2 kW |
| 600 m³/day → | HDSQ1-003 | 9000 × 3300 × 3650 (High-precision with rotation) | 2 | 30.8 kW | 61.6 kW |
| 1000 m³/day → | HDSQ1-003 | 9000 × 3300 × 3650 (high-precision rotary configuration) | 3 | 46.8 kW | 140.4 kW |
