CUTTING & FINISHING
Single-station rotary vertical cutter
Completes the vertical cutting stage in the 100 m³ configuration.
Compare line configurations
EQUIPMENT GALLERY

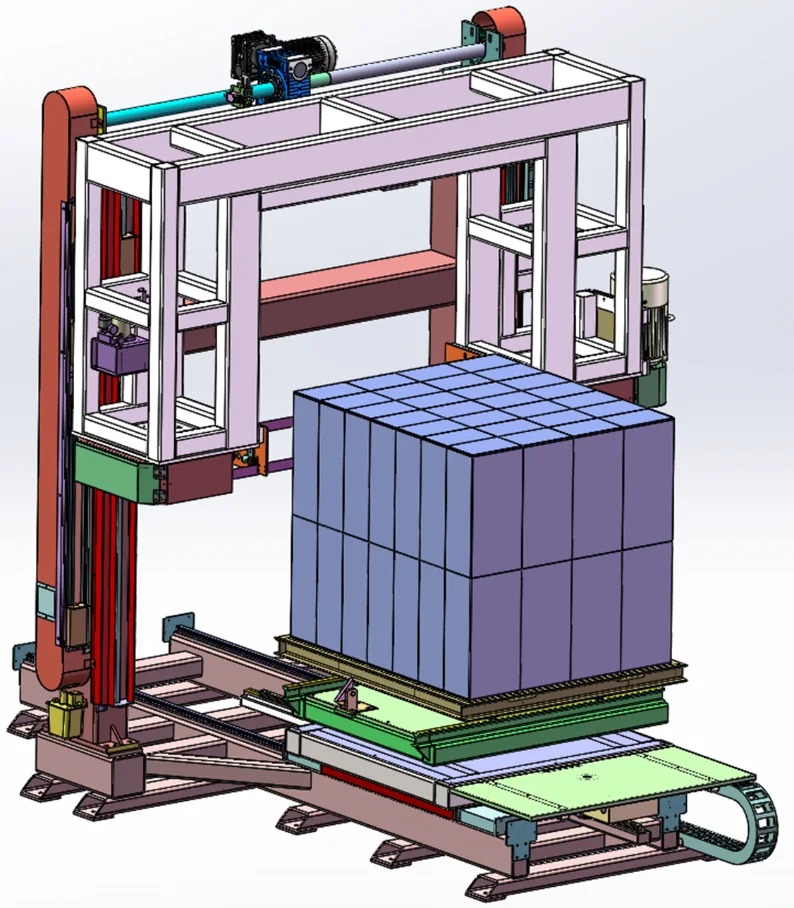

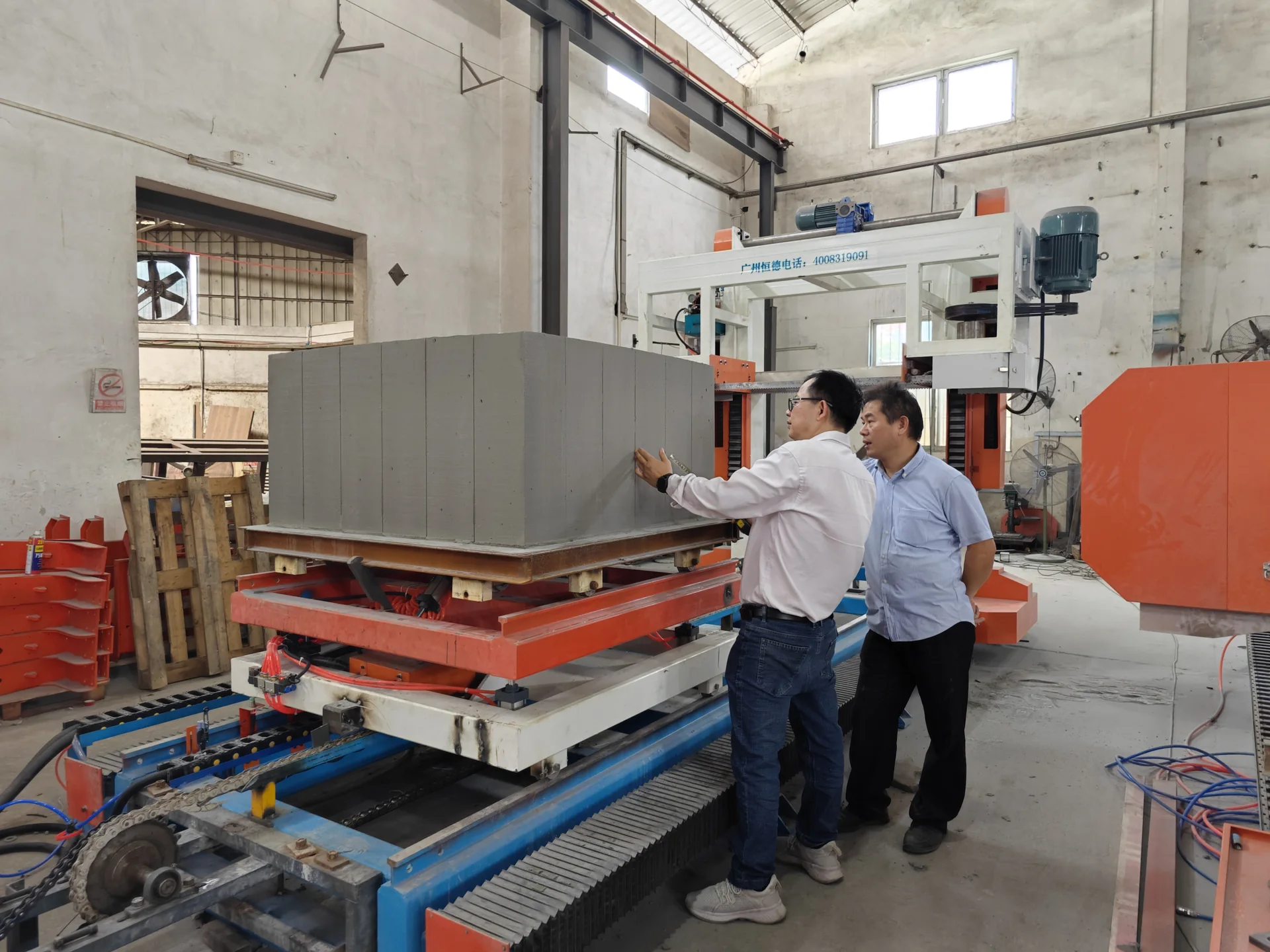

Real equipment photos and engineering views
Open any image to inspect the original full-size media.
STANDARD EQUIPMENT PARAMETERS
Model, dimensions, power, weight and function
Standard catalogue parameters. Capacity-specific quantity remains in the production-line configuration table below.
| Variant | Model | Dimensions | Rated power | Reference weight | Function |
|---|---|---|---|---|---|
| Single-pass rotary vertical cutter | HDSHM1-01 | 4250 × 3300 × 3550 mm | 16.6 kW | 4000 kg | Cuts one billet up to 1400 × 1200 × 1200 mm in the listed configuration. |
Reference parameters describe the listed equipment model. Final interfaces, voltage, quantity and delivered configuration are confirmed in the project quotation and engineering drawings.
PRODUCTION-LINE CONFIGURATIONS
Configuration options by production line
The highlighted row matches the production line you selected. Final model, dimensions, quantity and power are confirmed during project engineering.
| Production line | Model | Dimensions | Qty. | Unit power | Total |
|---|---|---|---|---|---|
| 100 m³/day → | HDSHM1-01 | 4250 × 3300 × 3550 (high-precision rotary configuration) | 1 | 18.6 kW | 18.6 kW |
