CUTTING & FINISHING
Multi-panel slotting machine
Creates the confirmed edge groove or joint profile on multiple panels.
Compare line configurations

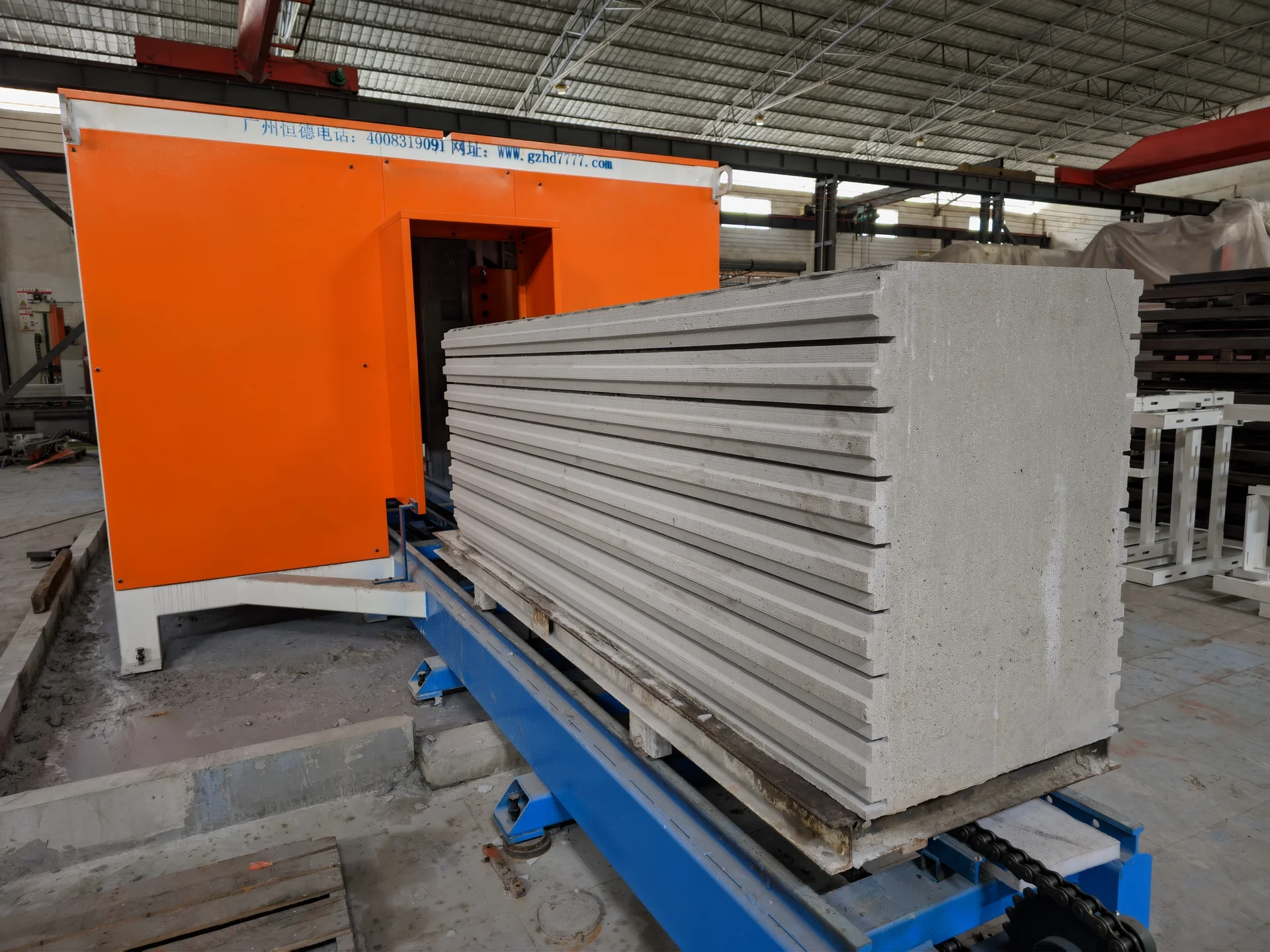

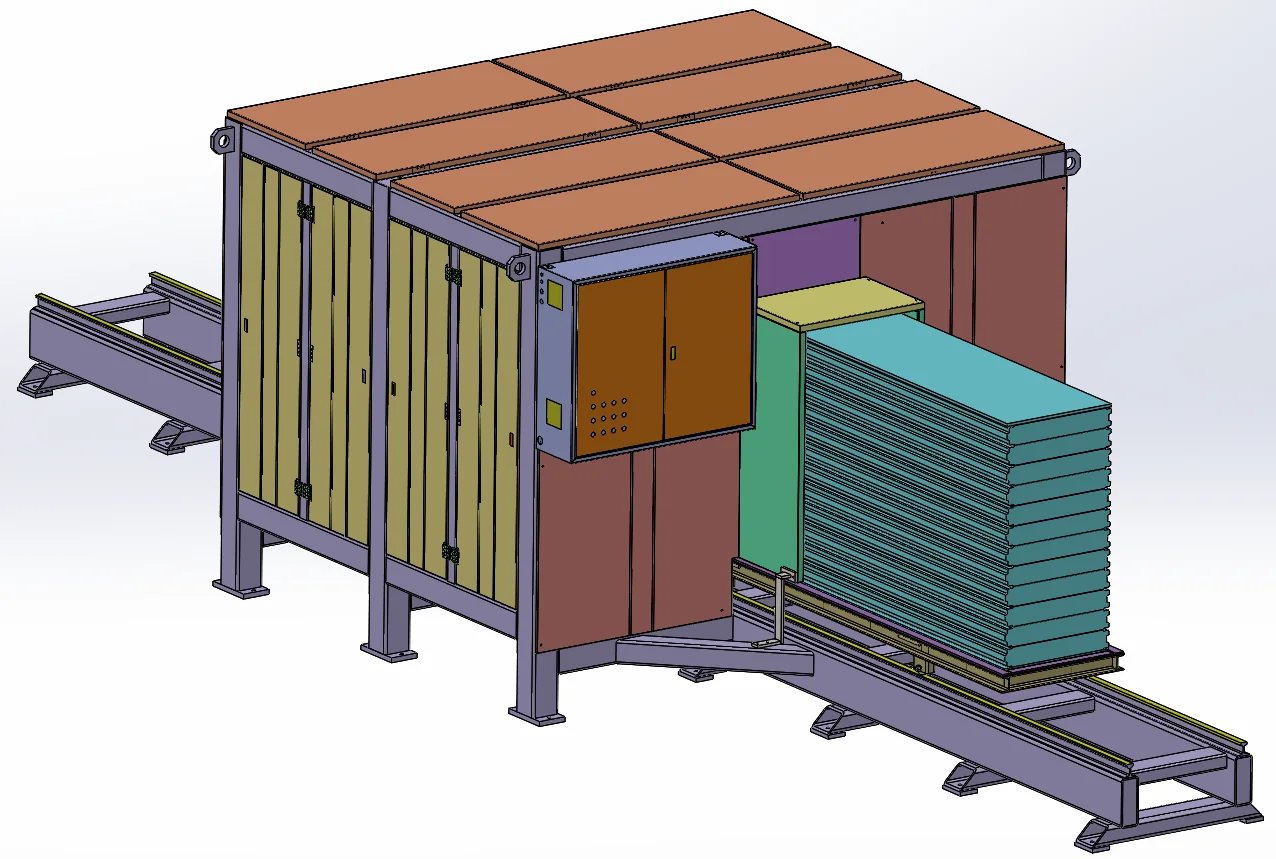

EQUIPMENT GALLERY
Real equipment photos and engineering views
Open any image to inspect the original full-size media.
STANDARD EQUIPMENT PARAMETERS
Model, dimensions, power, weight and function
Standard catalogue parameters. Capacity-specific quantity remains in the production-line configuration table below.
| Variant | Model | Dimensions | Rated power | Reference weight | Function |
|---|---|---|---|---|---|
| Multi-panel slotting machine | HDKG-C01 | 9250 × 3100 × 2400 mm | 22 kW | 4100 kg | Cuts the specified tongue-and-groove edge profile into green panels. |
Reference parameters describe the listed equipment model. Final interfaces, voltage, quantity and delivered configuration are confirmed in the project quotation and engineering drawings.
PRODUCTION-LINE CONFIGURATIONS
Configuration options by production line
The highlighted row matches the production line you selected. Final model, dimensions, quantity and power are confirmed during project engineering.
| Production line | Model | Dimensions | Qty. | Unit power | Total |
|---|---|---|---|---|---|
| 500 m³/day → | HDKG-C01 | 9250 × 3100 × 2400 | 2 | 22 kW | 44 kW |
