HANDLING & STACKING
Reinforcement rod insertion/removal machine
Positions and removes the rod system for the confirmed reinforced wall-panel route.
Compare line configurations
EQUIPMENT GALLERY

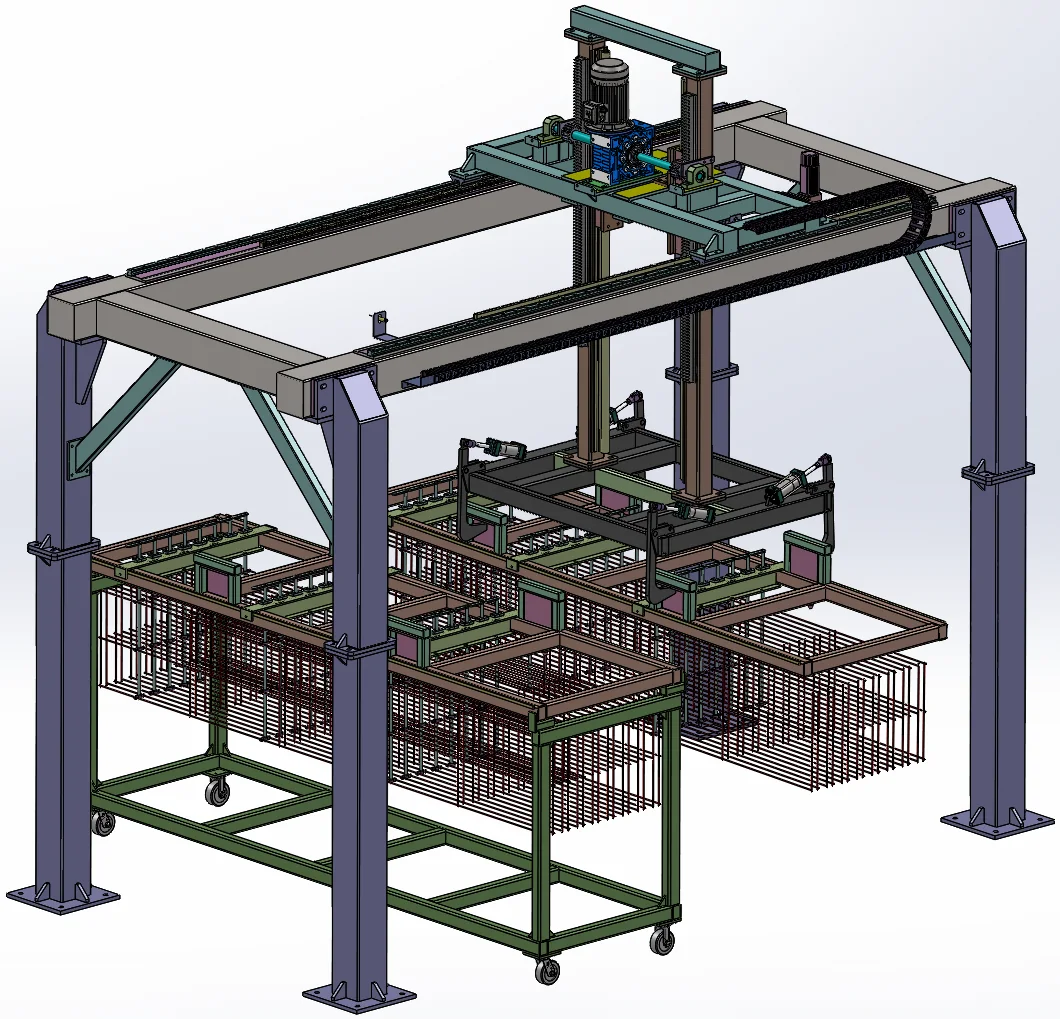

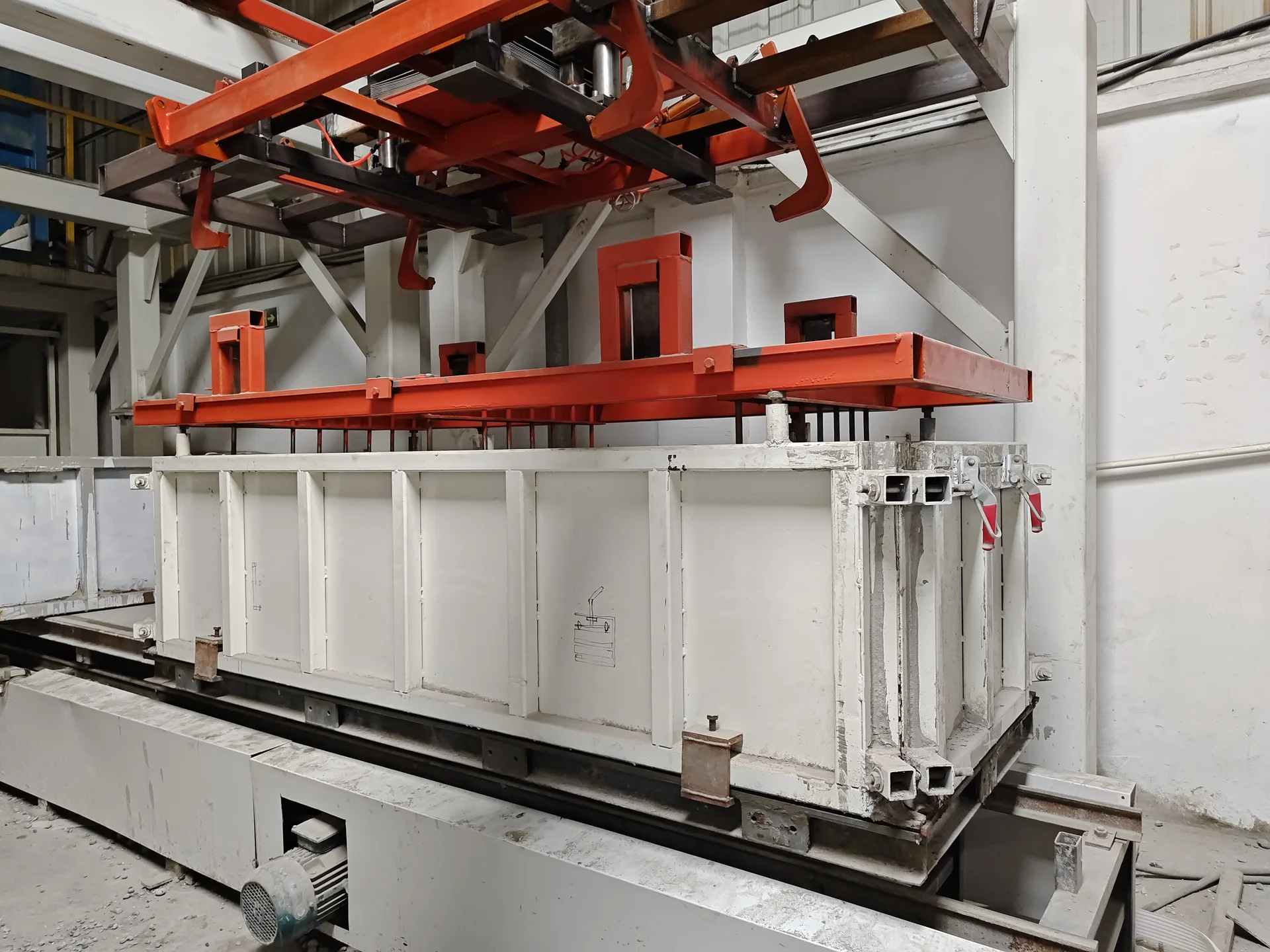

Real equipment photos and engineering views
Open any image to inspect the original full-size media.
STANDARD EQUIPMENT PARAMETERS
Model, dimensions, power, weight and function
Standard catalogue parameters. Capacity-specific quantity remains in the production-line configuration table below.
| Variant | Model | Dimensions | Rated power | Reference weight | Function |
|---|---|---|---|---|---|
| Reinforcement rod insertion/removal machine | HDTH-004 | 6000 × 2600 × 4100 mm | 6.2 kW | 3600 kg | Assembles the reinforcement mesh and separates it from the green product at the confirmed stage. |
Reference parameters describe the listed equipment model. Final interfaces, voltage, quantity and delivered configuration are confirmed in the project quotation and engineering drawings.
PRODUCTION-LINE CONFIGURATIONS
Configuration options by production line
The highlighted row matches the production line you selected. Final model, dimensions, quantity and power are confirmed during project engineering.
| Production line | Model | Dimensions | Qty. | Unit power | Total |
|---|---|---|---|---|---|
| 80 m³/day → | HDTH-004 | 6000 × 2600 × 4100 | 1 | 6.2 kW | 6.2 kW |
| 150 m³/day → | HDTH-004 | 6000 × 2600 × 4100 | 1 | 6.2 kW | 6.2 kW |
| 200 m³/day → | HDTH-004 | 6000 × 2600 × 4100 | 1 | 6.2 kW | 6.2 kW |
| 500 m³/day → | HDTH-004 | 6000 × 2600 × 4100 | 1 | 6.2 kW | 6.2 kW |
USED IN THESE PRODUCTION LINES
Return to the corresponding capacity
80 m³/day
HDTH-004 · 1
Back to production-line equipment → Lightweight wall panel production150 m³/day
HDTH-004 · 1
Back to production-line equipment → Lightweight wall panel production200 m³/day
HDTH-004 · 1
Back to production-line equipment → Lightweight wall panel production500 m³/day
HDTH-004 · 1
Back to production-line equipment →SAME PROCESS STAGE
Explore other equipment in handling & stacking
Compare other equipment used at the same production stage. Final selection depends on the complete line configuration.
Block lifter
Lifts or grips blocks according to the confirmed product condition and transfer sequence.
Open equipment detail → Handling & stackingDemoulding crane
Separates and lifts the mould or green product at the confirmed demoulding condition.
Open equipment detail → Handling & stackingLifting & stacking machine
Lifts and stacks finished product according to the approved handling pattern.
Open equipment detail →Discuss this equipment in a complete production line
Send the target product, planned output, raw materials and project location. HENGDE will match the equipment to the complete factory configuration.
